Advanced clean room system to complement the existing CTM and
System Ceiling.

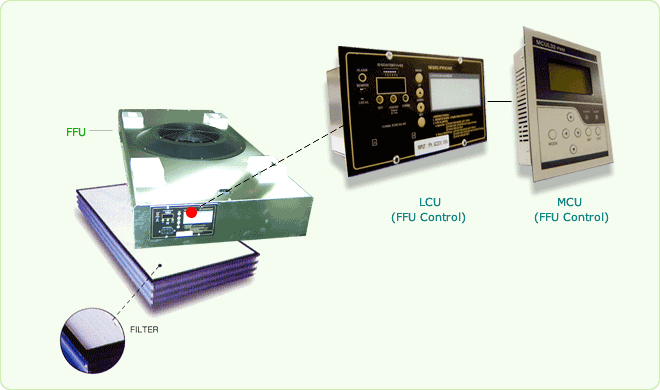

The central operation makes the maintenance of clean room easier
and a complex cleanliness level management is allowed from low to
high level.
A modification in the layout of clean room requires no construction;
the rearrangement of FFU is enough.
The use of AC-Motor reduces the cost of operating FFU and some FFUs
adopt high-efficient BLDC-Motor; they provide a low noise and require
no separate noise-absorbing facility, making users more convenient.
|
|
| |
- The power consumption of each FFU is very low.
- FFU provides vertical laminar airflow to the clean room.
- FFU is suitable for the clean room of Class 0.1 under Class 100,000.
- FFU is installed on the ceiling mould bar.
- FFU is installed on the side or top of the clean room.
- In repairing the clean room, it is easy to modify the layout of
FFU.
- FFU provides a low noise and is made of Aluminum; it is light
and hard.
- FFU comes in the standard size of 1200 x 600 and other sizes available.
- FFU provides a low vibration.
- FFU may adopt either AC-Motor or BLDC-Motor.
|
|
| Type |
SG-FFU1H |
SG-FFU2H |
SG-FFU3H |
REMARK |
| classification |
AC |
DC |
AC |
DC |
AC |
DC |

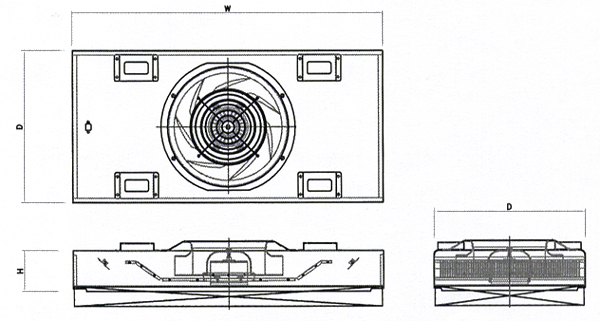

| Dimension(mm) |
620(L)x620(W)x155(H) |
580(L)x772(W)x155(H) |
580(L)x925(W)x155(H) |
Additional
Standard
Dimension
Available |
| Power |
1Ø220V~230V 60Hz
|
1Ø220V~230V 60Hz |
1Ø220V~230V 60Hz |
| Static Press(mmAq) |
9 |
9 |
9 |
| Air Velocity(m/s) |
0.25~0.45 |
0.25~0.45 |
0.25~0.45 |
| Power(W) |
80~125 |
45~70 |
80~135 |
50~85 |
85~150 |
65~110 |
| Current(A) |
0.40~0.63 |
0.22~0.35 |
0.40~0.67 |
0.25~0.43 |
0.47~0.75 |
0.33~0.55 |
| Noise(dB) |
47~53 |
44~50 |
46~53 |
44~52 |
48~54 |
45~53 |
| Filter Spec. |
ULPA 99.999%
15CCM at 9.5mmAq |
ULPA 99.999%
15CCM at 9.5mmAq |
ULPA 99.999%
15CCM at 9.5mmAq |
Excluding Filter |
| Weighting(kg) |
15 |
16 |
17
|
. |
Type |
SG-FFU4H |
SG-FFU5H |
SG-FFU6H |
REMARK |
classification |
AC |
DC |
AC |
DC |
AC |
DC |
Dimension(mm) |
580(L)x1,180(W)x155(H) |
580(L)x1,500(W)x155(H) |
1,180(L)x1,180(W)x155(H) |
Additional
Standard
Dimension
Available |
Power |
1Ø220V~230V 60Hz
|
1Ø220V~230V 60Hz |
1Ø220V~230V 60Hz |
Static Press(mmAq) |
9 |
9 |
9 |
Air Velocity(m/s) |
0.25~0.45 |
0.25~0.45 |
0.25~0.45 |
Power(W) |
130~180 |
75~130 |
170~220 |
90~170 |
125~175 |
80~140 |
Current(A) |
0.60~0.80 |
0.40~0.65 |
0.8~1.0 |
0.45~0.85 |
0.6~0.8 |
0.4~0.7 |
Noise(dB) |
50~60 |
48~55 |
52~58 |
50~57 |
50~56 |
48~55 |
Filter Spec. |
ULPA 99.999%
15CCM at 9.5mmAq |
ULPA 99.999%
15CCM at 9.5mmAq |
ULPA 99.999%
15CCM at 9.5mmAq |
Excluding Filter |
Weighting(kg) |
18
|
22
|
34
|
. |
|
| |
|
|
