When a person goes into a clean room or any other clean workplace,
an air shower removes any dust or microbes from his/her body using
high-speed clean air in order for any polluting material to go into
the room along with the person.
|
|
|
|
|
- Makes the air pressed by a special fan clean via a HEPA Filter
and provides it at a high speed to remove any dust and/or germ
from an object. (More than 99.97% - 0.3§)
- Keeps the indoor press of a machine lower than inside a clean
room in order for any dust generated not to come into the clean
room.
- Activates a fan when a working person comes into the machine
and makes the lock on the door of clean room active at the same
time, so that the person may not go into the room while taking
a shower
|
|
|

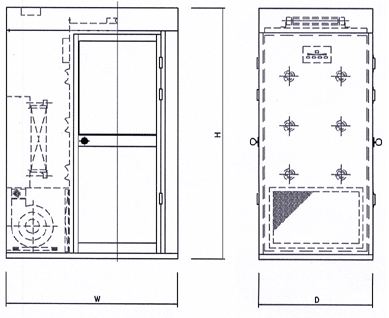

Model |
SG-AS-1 |
SG-AS-2 |
Specifications |
Size |
Horizontal(mm) |
1300 |
1600 |
Vertical(mm) |
1000 |
1000 |
Wind Volume |
14§©/min
|
28§©/min |
Wind Velocity |
25m/sec |
Materials |
External |
STS or SCP |
Door |
AL or SCP
|
Injection
Nozzle |
STS or
AL ©ª30mm
|
Filter |
Pre Filter |
Glass Fiber
or Felt |
High Performance
Filter |
AL Media
or Glass Fiber |
EFF, % |
Pre : AFI
80% HP : DOP 99.97% |
0.3§ |
Fan & Motor |
Fan |
Sirocco |
Motor |
0.75KW X
2P |
F.L |
20W X 1 |
Color |
Ivory(PA-32871) |
Control Panel |
Auto or Manual |
Power |
3©ª x 220V x60Hz |
* In addition to the specification above, various types are available
according to order. |
|
|
