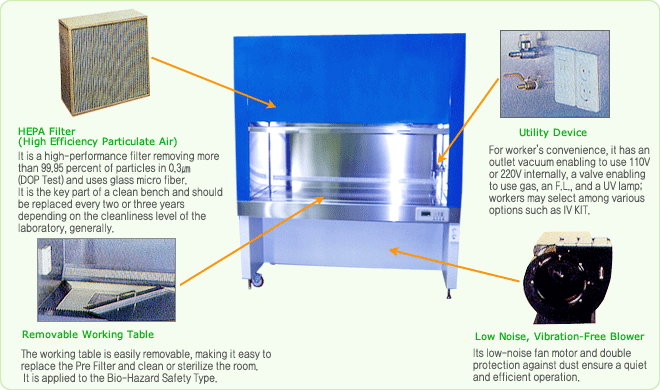

The Clean Bench is to remove dust and germ from local workplace,
making it clean. Two types are available; vertical and horizontal
laminar airflow. It is used as various applications such as
laboratory, hospital, medicine-manufacturing factory and semi-conductor
assembly.
|
|
|
|
Spec/
Model
|
SG-CB-V1
|
SG-CB-V2 |
SG-CB-V3 |
SG-CB-V4 |
| Dimension |
Width(W)mm
|
850 |
1300 |
1650 |
1950 |
| Depth(D)mm |
900 |
900 |
900 |
900 |
| Height1(H1) |
720 |
720 |
720 |
720 |
| Height2(H1) |
1000 |
1900 |
1900 |
1900 |
Filter Size
|
610x762x150x1
|
610x1219x150x2 |
610x762x150x2 |
610x915x150x2 |
| Wind Volume |
16㎥/min
|
25㎥/min |
31㎥/min |
37㎥/min |
| Light |
20W
x 4 |
20W
x 4 |
40W
x 4 |
40W
x 4 |
| Power Consumption |
310W |
635W |
660W |
770W |
HEPA
Filter
|
610x610x150t |
610x610x292t |
610x792x292t |
610x915x292t |
Class
|
100 |
Light
|
1000
Lux |
Wind Velocity
|
0.5m/sec |
| Filter
EFF |
HEPA
DOP 99.97% 0.3㎛ |
| PRE
AFI 85% Felt and Fiber |
* In addition to the specification above, various types are available
according to order
|
|
| |
Spec/
Model
|
SG-CB-H1
|
SG-CB-H2 |
SG-CB-H3 |
SG-CB-H4 |
| Dimension |
Width(W)mm
|
1000 |
1350 |
1800 |
2100 |
| Depth(D)mm |
1000 |
1000 |
1000 |
1000 |
| Height1(H1) |
720 |
720 |
720 |
720 |
| Height2(H1) |
1900 |
1900 |
1900 |
1900 |
Filter Size
|
610x762x150x1
|
610x1219x150x1 |
610x762x150x2 |
610x915x150x2 |
| Wind Volume |
22㎥/min
|
36㎥/min |
44㎥/min |
52㎥/min |
| Light |
20W
x 3 |
40W
x 4 |
40W
x 6 |
40W
x6 |
| Power Consumption |
310W |
635W |
660W |
770W |
Class
|
100 |
Light
|
1000
Lux |
Wind Velocity
|
0.5m/sec |
| Filter
EFF |
HEPA
DOP 99.97% 0.3㎛ |
| PRE
AFI 85% Felt and Fiber |
* * In addition to the specification above, various types are available
according to order. |
| |
|
|
| |
|
|
- Class 100 or Lower
- The clean air via the HEPA Filter completely cleans the working
part.
- Suitable for Vibration-Causing Work
- The body and the working table are completely separated, sending
no vibration to the table.
|
|
| |
| Spec/ Model |
SG-CB-VS1 |
SG-CB-VS2 |
SG-CB-VS3 |
SG-CB-VS4 |
| Dimension |
Width(mm) |
840 |
130 |
1600 |
1900 |
| Depth(D) |
900 |
900 |
900 |
900 |
| Type |
H 1 |
1450 |
720 |
720 |
720 |
| H 2 |
570 |
1900 |
1900 |
1900 |
| Type |
H 1 |
1860 |
1860 |
1860 |
1860 |
| H 2 |
720 |
720 |
720 |
720 |
| Type |
H 1 |
2015 |
295 |
2015 |
2015 |
| H 2 |
875 |
875 |
875 |
875 |
| Wind Volume |
E |
14 |
22 |
27 |
32 |
| F |
18 |
28 |
34 |
41 |
| G |
22 |
34 |
42 |
49 |
| Light |
20W x4 |
40W x4 |
40W x4 |
40W x4 |
| Power Consumption(W) |
310 |
635 |
650 |
770 |
|
|
| |
Performance |
Dust-Collection
Factor |
HEPA Filter,
PRE Filter |
Dust-Collecting
Efficiency |
More than
99.97 percent of particles in 0.3㎛ |
Wind Velocity |
0.5m/sec |
Cleanliness
Level |
Class 100 |
Structure-Materials |
Materials
of Working Talbe |
STS304 |
CONCENT |
AC 220V
15A X 2 |
ADJUSTER |
For adjusting
the level of working table |
CASTING |
SCP Steel
Plate Coating |
/ Power |
AC 220V |
* In addition to the specification above, various types are available
according to order.
|
| |
|
