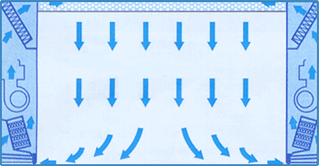

The ACU clean room
system ensures Class 1000 without using the grating base. Its
line-type supply duct maintains an extremely stable airflow
close to laminar airflow.

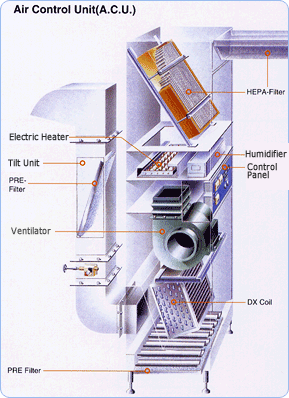

- The Air Clean Unit is a package of air cleaner with a
HEPA Filter and a fan integrated.
- It can maintain approximately Class 1000 and is suitable
for laboratory, operating room, aseptic room, etc.
- It is compact and maximizes the indoor space concerned
since it is designed to be the minimum depth.
|
|
|
|
|
| Model No. |
SG-ACU-1 |
SG-ACU-2 |
SG-ACU-3 |
| Air Vol.(CMM) |
30 |
50 |
75 |
| Fan Size |
11/2(S.S)x2 |
11/2(S.S)x2 |
11/2(S.S)x2 |
| Fan Motor(kw) |
0.75 |
1.5 |
2.2 |
| Cooling Cap.(Kcal/h)
|
8400 |
14300 |
21500 |
| Heating Cap.(Kcal/h) |
6400 |
10750 |
15480 |
| Elec. Heater(kw x Step) |
1.85x4 |
3.2x4 |
4.5x4 |
| Humdifier Cap.(Kg/h) |
2.4 |
3.6 |
4.8 |
| Pan Type(kw) |
2 |
3 |
4 |
| HEPA Filter |
99.97%(0.3 micron by D.O.P
Test) |
| Pre-Filter |
AFI 85%(50mm Thick) |
| Control |
Humdistst, Heating, Cooling,
Solenoid Valve, Expansion Valve |
| Main N.F.B |
50A |
75A |
125A |
| Full Load(kw) |
10.65 |
18.15 |
26.3 |
| Dimension(mm) |
1050x570x2300 |
1250x715x2300 |
1400x715x2300 |
| Sound Level (dB) |
50~60 |
| Power Source |
1Ø x 220V x 60Hz |
* In addition to the specification above, various types are available
according to order.
|
|
